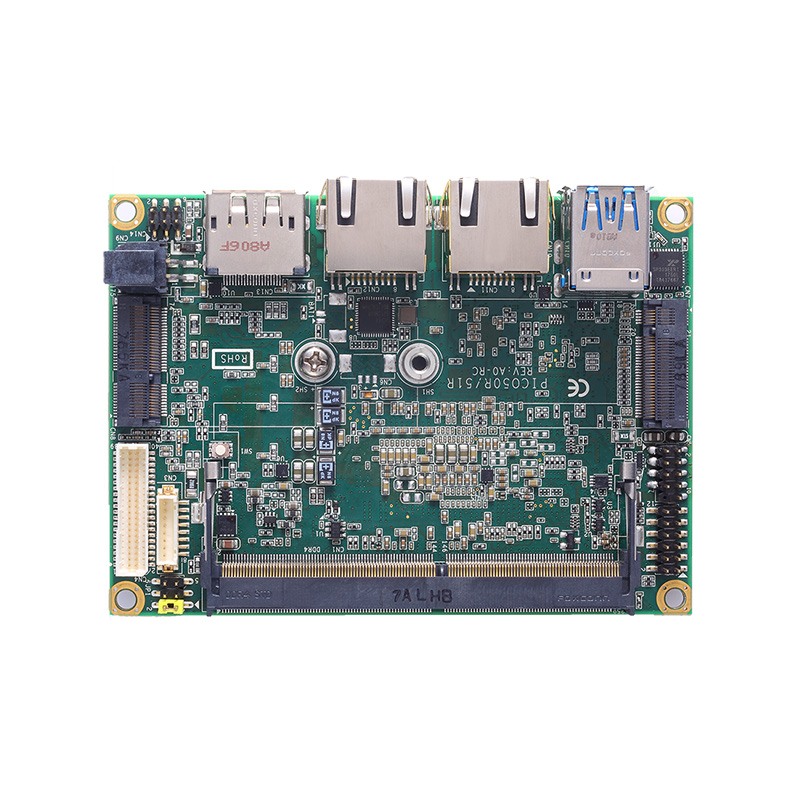

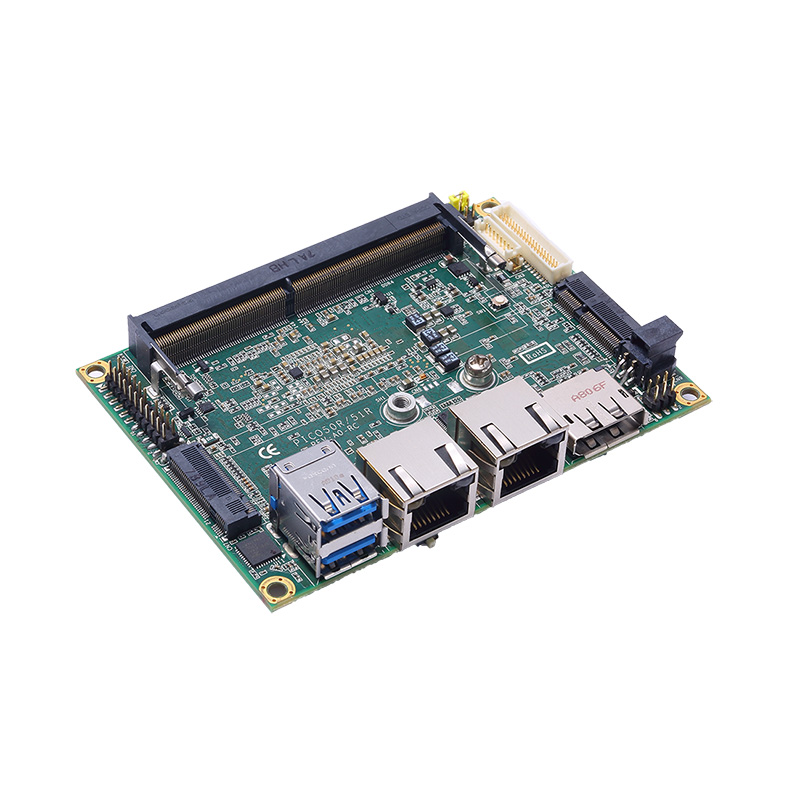

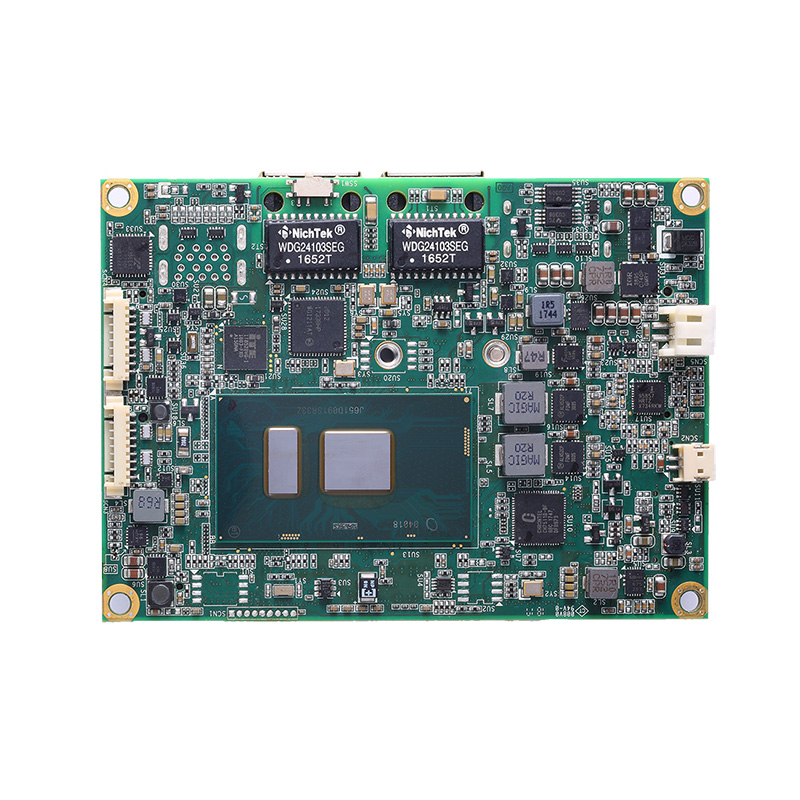

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort++, LVDS and 2 GbE LAN
محصولات مرتبط
پردازنده نسل هفتم Intel® Core™ i7/i5/i3 و Celeron®
۱ اسلات حافظه DDR4 SO-DIMM برای حداکثر ۱۶ گیگابایت حافظه
۲ پورت شبکه GbE
کلید M.2 E
کلید M.2 B
پشتیبانی از Intel® AMT 11
| CPU | 7th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 2 x USB 2.0 |
| 2 x USB 3.0 | |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® I219-LM & Intel® I210-AT) |
| Display | 1 x DisplayPort++ |
| 1 x LVDS | |
| Digital I/O | 4-channel in/out programmable |
| Audio | Mic-in/Line-out |
| Storage | 1 x M.2 Key B 2242 (SATA, USB 2.0, optional PCIe x2) |
| Expansion | 1 x M.2 Key E 2230 (PCIe x1, USB 2.0) |
| Others | SMBus; compatible with I2C |
| Intel® AMT 11 | |
| Battery | Lithium 3V/220mAH |
| Power Input | 2 x 2-pin connector |
| +12 VDC-in only | |
| AT Auto Power On function supported | |
| Power Requirements | Intel® Core™ i7-7600U @2.8 GHz 8GB DDR4 max. RMS. +12V@3.2A |
| Intel® Core™ i5-7300U @2.6 GHz 8GB DDR4 max. RMS. +12V@2.6A | |
| Intel® Core™ i3-7100U @2.4 GHz 8GB DDR4 max. RMS. +12V@2.3A | |
| Intel® Celeron® 3965U @2.2 GHz 8GB DDR4 max. RMS. +12V@1.6A |
PICO51RPGG-i7-7600U (P/N-E38H51R100)
Pico-ITX SBC with Intel® Core™ i7-7600U, DisplayPort, LVDS and 2 GbE LAN
PICO51RPGG-CELERON-3965U (P/N-E38H51R101)
Pico-ITX SBC with Intel® Core™ Celeron-3965U, DisplayPort, LVDS and 2 GbE LAN
PICO51RPGG-i5-7300U (P/N-E38H51R102)
Pico-ITX SBC with Intel® Core™ i5-7300U, DisplayPort, LVDS and 2 GbE LAN
PICO51RPGG-i3-7100U (P/N-E38H51R103)
Pico-ITX SBC with Intel® Core™ i3-7100U, DisplayPort, LVDS and 2 GbE LAN

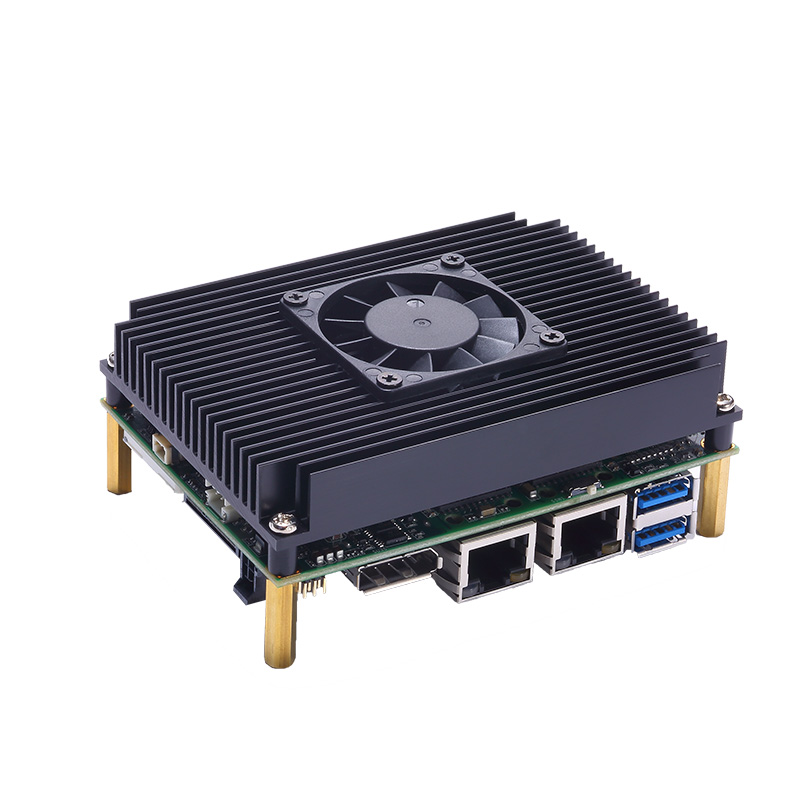

PICO51RPGG-i7-7600U W/FAN (P/N-E38H51R104)
Pico-ITX SBC with Intel® Core™ i7-7600U, DisplayPort, LVDS, 2 GbE LAN and cooler
PICO51RPGG-CELERON-3965U W/FAN (P/N-E38H51R105)
Pico-ITX SBC with Intel® Core™ Celeron-3965U, DisplayPort, LVDS, 2 GbE LAN and cooler
PICO51RPGG-i5-7300U W/FAN (P/N-E38H51R106)
Pico-ITX SBC with Intel® Core™ i5-7300U, DisplayPort, LVDS, 2 GbE LAN and cooler
PICO51RPGG-i3-7100U W/FAN (P/N-E38H51R107)
Pico-ITX SBC with Intel® Core™ i3-7100U, DisplayPort, LVDS, 2 GbE LAN and cooler

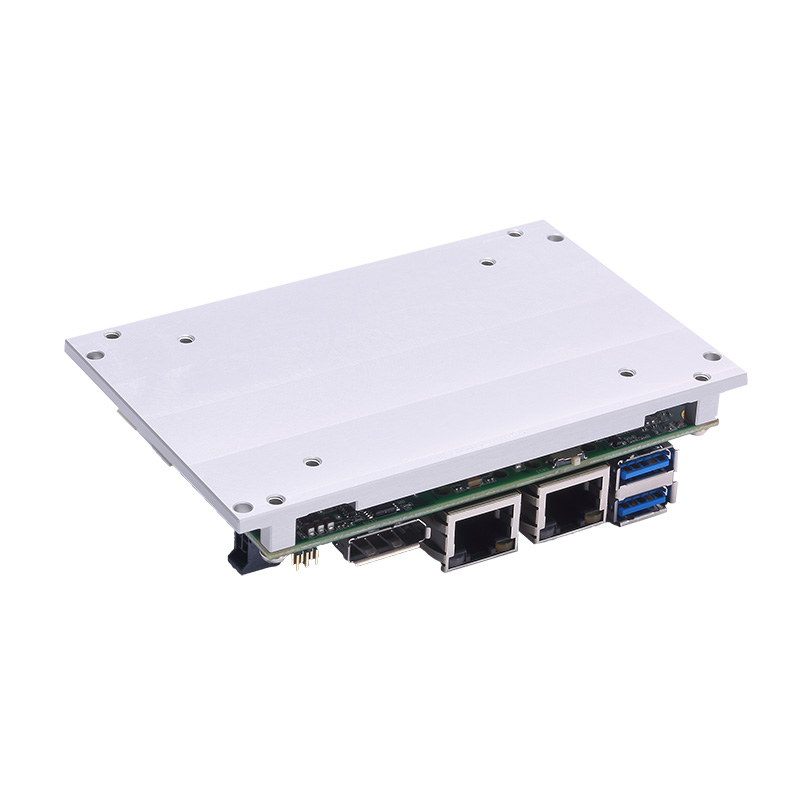

7128H51R000E
Heatspreader
594H3180400E
DC power cable for adapter, L=180 mm
50966124050E
Adapter 12V 60W FSP060-DHAN3 with screw
59380880250E
COM port cable DB9--9x1P, P=125 mm, L=250 mm
594H51R2810E
USB cable 2 x 5P-cut P9 P2.0/2 x USB-4P, L=180 mm
594H3186800E
Buzzer cable 9 x 5.5 mm 2-pin, L=40mm
Drivers
| Date | Description | Version | Download File |
| 9/9/2019 | AX92915_Audio driver | VA1.0 | 229.8 MB |
| 9/9/2019 | LAN driver | VA1.0 | 65.2 MB |
| 9/9/2019 | ME driver | VA1.0 | 86.5 MB |
| 9/9/2019 | Graphic driver | VA1.0 | 233.9 MB |
| 9/9/2019 | Chipset driver | VA1.0 | 4.9 MB |
Manual
| Date | Description | Version | Download File |
| 10/11/2023 | User's manual | VA2 | 6.1 MB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB | |
| 2/15/2020 | CE-Conformity Declaration | 93 KB |
