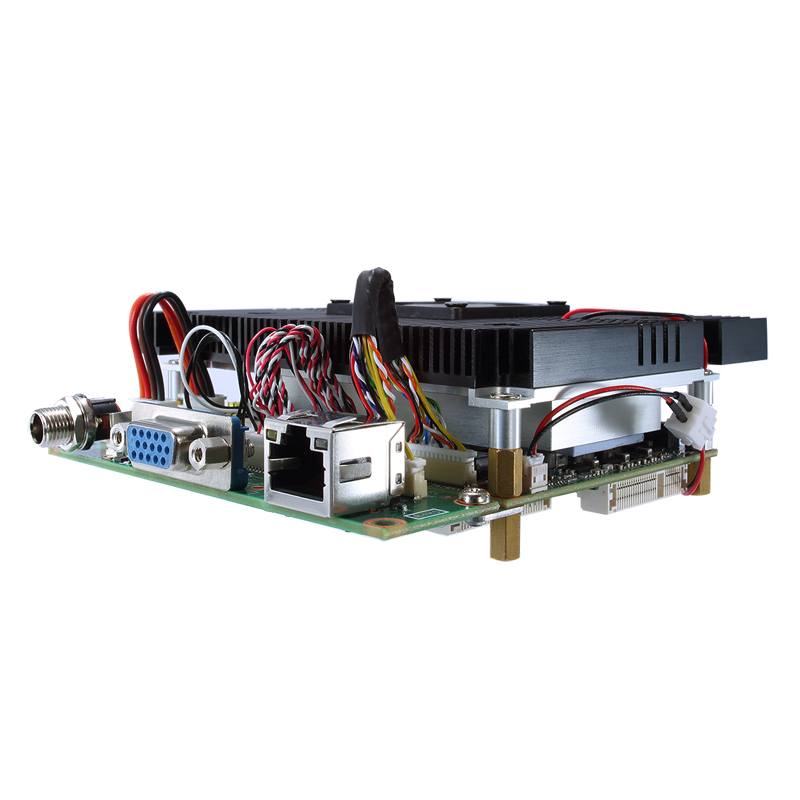

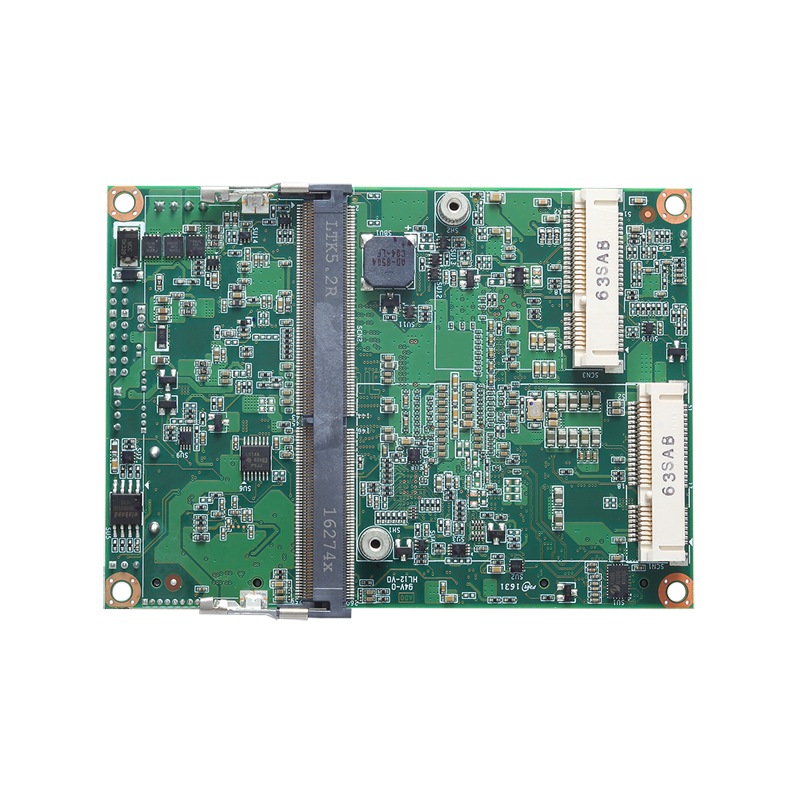

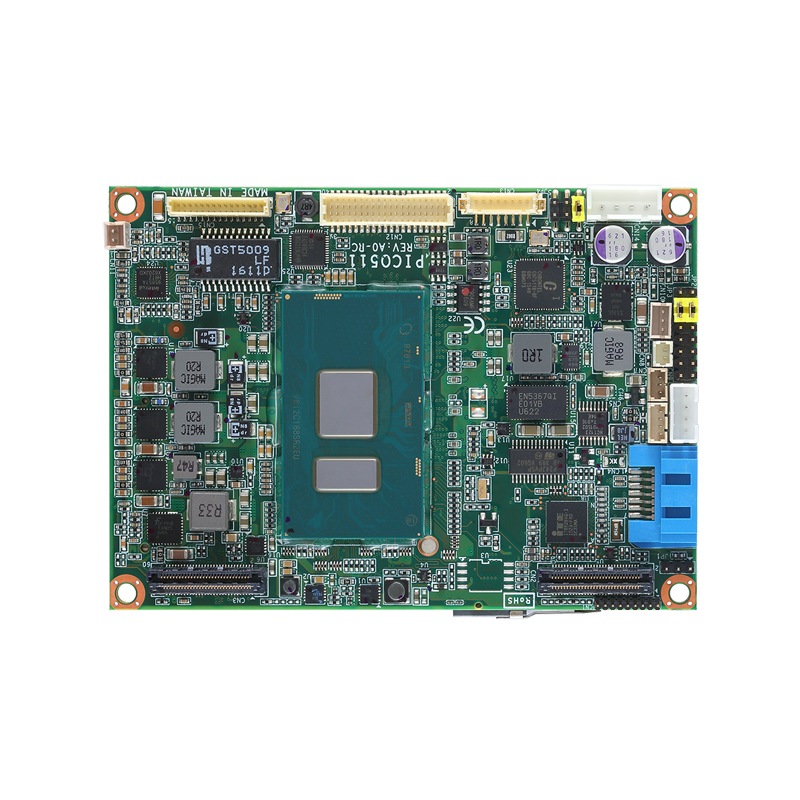

کیس کوچک Pico-ITX با پردازندههای نسل هفتم Intel® Core™ i7/i5/i3 و Celeron®، LVDS و LAN
محصولات مرتبط
- پردازنده نسل هفتم Intel® Core™ i7/i5/i3 و Celeron®
- ۱ عدد رم DDR4-2133 SO-DIMM، تا ۱۶ گیگابایت
- ۲ اسلات کارت PCI Express Mini
- پشتیبانی از Intel® AMT 11
| CPU | 7th generation Intel® i7/i5/i3 & Celeron® processor onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 260-pin SO-DIMM DDR4-2133 , up to 16GB |
| BIOS | AMI |
| COM | N/A |
| USB | 1 x USB 2.0 |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® i219LM) |
| Display | 1 x LVDS |
| Digital I/O | N/A |
| Audio | N/A |
| Storage | 1 x SATA-600 |
| Expansion | 1 x Full-size PCI Express Mini Card with mSATA supported 1 x Half-size PCI Express Mini Card 1 x PCIex1, 1 x LPC, 1 x DDI, 4 x USB 3.0, 1 x HD audio and 1 x SMBus (through expansion connector) |
| Others | TPM 1.2 SMBus I2C |
| Battery | Lithium 3V /220 mAH |
| Power Input | 1 x 4-pin connector +12V DC-in only AT Auto Power On function supported |
| Power Requirements | TBD |
| Watchdog Timer | 65536 levels, 1~65535 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | -20°C~ +70°C (-4°F ~ +158°F) |
| Relative Humidity | 10% ~ 95% relative humidity, non-condensing |
| Dimensions | 100 x 72 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
| PICO511LG-i7-7600U (P/N-E38H511103) |
| Pico-ITX SBC with Intel® Core™ i7-7600U, LVDS, 1 GbE LAN, 1 USB |
| PICO511LG-i5-7300U (P/N-E38H511102) |
| Pico-ITX SBC with Intel® Core™ i5-7300U, LVDS, 1 GbE LAN, 1 USB |
| PICO511LG-i3-7100U (P/N-E38H511101) |
| Pico-ITX SBC with Intel® Core™ i3-7100U, LVDS, 1 GbE LAN, 1 USB |
| PICO511LG-Celeron-3965U (P/N-E38H511100) |
| Pico-ITX SBC with Intel® Celeron® 3965U, LVDS, 1 GbE LAN, 1 USB |
| AX93A00 (P/N-E393A00100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x VGA, 1 x Audio |
| AX93A01 (P/N-E393A01100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x GbE LAN |
| AX93A02 (P/N-E393A02100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x Audio |
| AX93A09 (P/N-E393A09100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio |
Drivers
| Date | Description | Version | Download File |
| 7/12/2017 | LAN driver | VA1.0 | 192.8 MB |
| 7/12/2017 | Audio driver | VA1.0 | 123.7 MB |
| 7/12/2017 | Graphic driver | VA1.0 | 159.1 MB |
| 7/12/2017 | Chipset driver | VA1.0 | 2.6 MB |
| 7/12/2017 | ME driver | VA1.0 | 100.7 MB |
Manual
| Date | Description | Version | Download File |
| 11/19/2020 | Quick Manual | VA2 | 162 KB |
| 11/19/2020 | AX93A07 Quick Manual | VA3 | 172 KB |
| 11/19/2020 | User Manual | VA3 | 6.8 MB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB | |
| 8/8/2017 | CE-Conformity Declaration | 47 KB |
