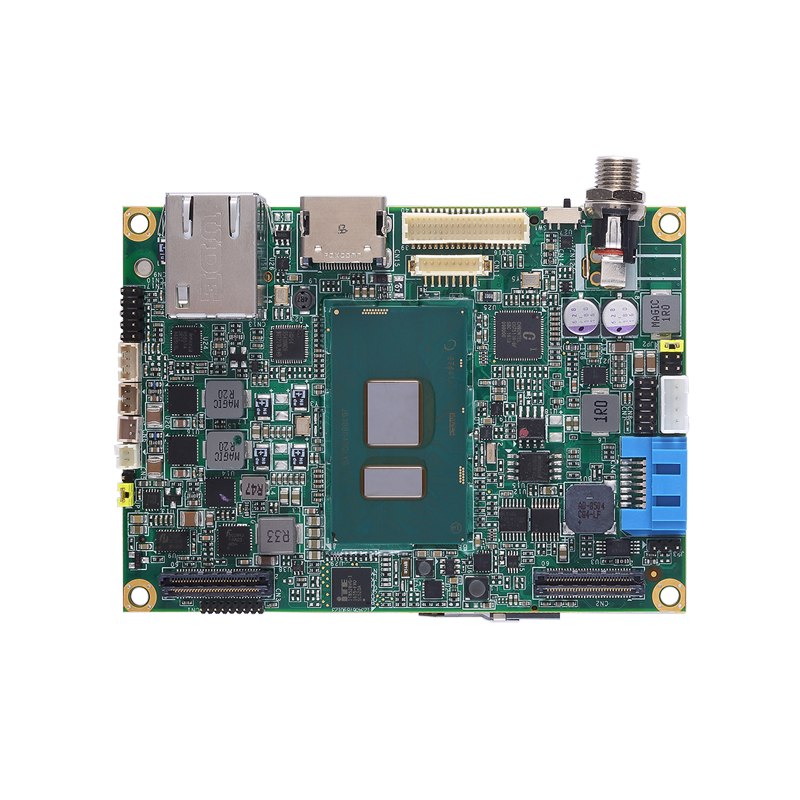

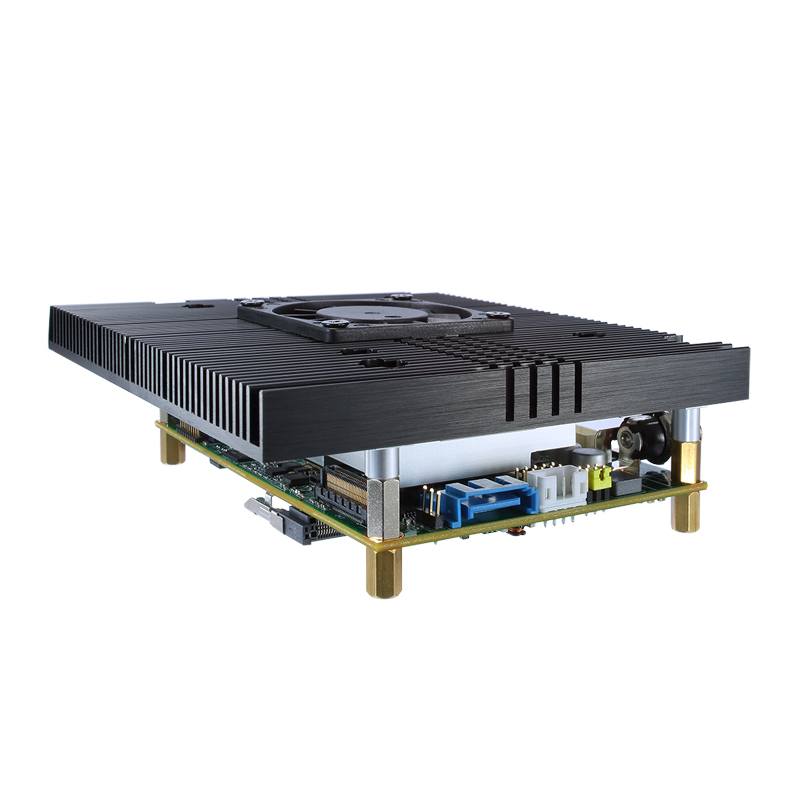

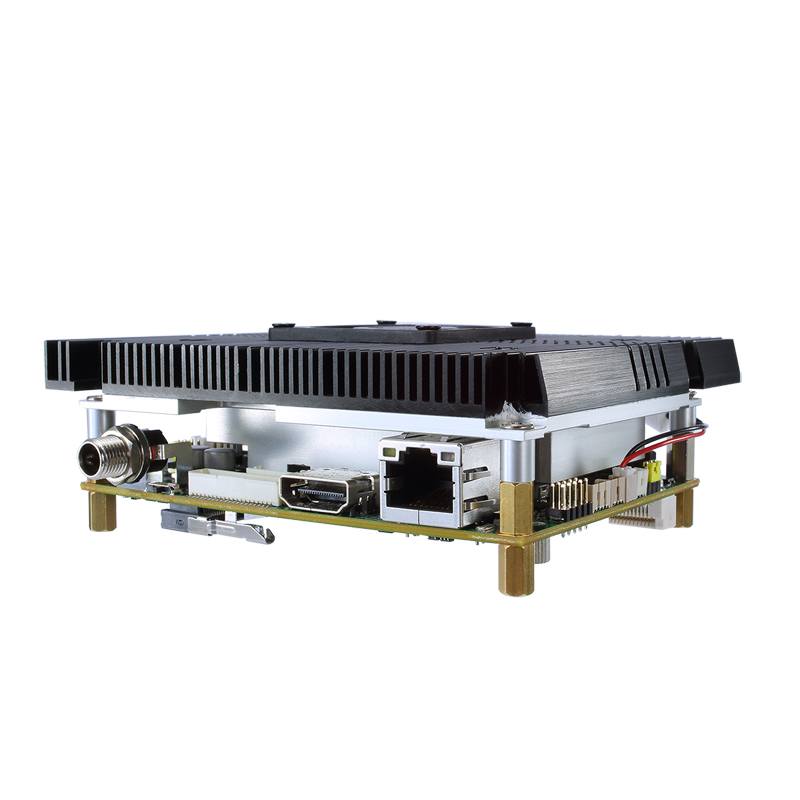

کیس کوچک Pico-ITX با پردازندههای نسل هفتم Intel® Core™ i7/i5/i3 و Celeron®، HDMI/LVDS و LAN
محصولات مرتبط
- پردازنده نسل هفتم اینتل Core™ i7/i5/i3 و Celeron®
- ۱ عدد رم DDR4 SO-DIMM، تا ۱۶ گیگابایت
- ۱ اسلات کارت PCI Express Mini
- پشتیبانی از Intel® AMT 11
| CPU | 7th generation Intel® i7/i5/i3 & Celeron® processor onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB |
| BIOS | AMI |
| COM | N/A |
| USB | 1 x USB 2.0 |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® i219LM) |
| Display | 1 x HDMI 1 x LVDS |
| Digital I/O | 8-channel in/out programmable |
| Audio | N/A |
| Storage | 1 x SATA-600 |
| Expansion | 1 x full-Size PCI Express Mini Card slot with mSATA 1 x PCIe x1, 1 x LPC, 1 x DDI, 4 x USB3.0,1 x HD audio and 1 x SMBus (through expansion connector) |
| Others | TPM1.2 I2C SMBus |
| Battery | Lithium 3V/220mAH |
| Power Input | DC Jack +12V DC-in only AT Auto Power On function supported |
| Power Requirements | i7-7600U: +12V @ 2.5A i5-7300U: +12V @ 2.4A i3-7100U: +12V @ 2.2A Celeron®-3965U: +12V @ 1.7A |
| Watchdog Timer | 65535 levels, 1 ~ 65535 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | /-20°C/ ~ +70°C (-4°F ~ +158°F) |
| Relative Humidity | /10% /~ 95% relative humidity, non-condensing |
| Dimensions | 100 x 72 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
| PICO512HG-i7-7600U (P/N-E38H512100) |
| Pico-ITX SBC with Intel® Core™ i7-7600U HDMI/LVDS, 1 GbE LAN, 1 USB |
| PICO512HG-i5-7300U (P/N-E38H512101) |
| Pico-ITX SBC with Intel® Core™ i5-7300U, HDMI/LVDS, 1 GbE LAN, 1 USB |
| PICO512HG-i3-7100U (P/N-E38H512102) |
| Pico-ITX SBC with Intel® Core™ i3-7100U, HDMI/LVDS, 1 GbE LAN, 1 USB |
| PICO512HG-Celeron-3965U (P/N-E38H512103) |
| Pico-ITX SBC with Intel® Celeron® 3965U, HDMI/LVDS, 1 GbE LAN, 1 USB |
| AX93A00 (P/N-E393A00100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x VGA, 1 x Audio |
| AX93A01 (P/N-E393A01100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x GbE LAN |
| AX93A02 (P/N- E393A02100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x Audio |
| AX93A09 (P/N-E393A09100) |
| I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio |
Drivers
| Date | Description | Version | Download File |
| 7/7/2017 | Graphic driver for Windows 10 64bit | VA1.0 | 161.7 MB |
| 7/7/2017 | ME driver for Windows 10 64bit | VA1.0 | 98.2 MB |
| 7/7/2017 | Audio driver for Windows 10 64bit | VA1.0 | 123.7 MB |
| 7/7/2017 | LAN driver for Windows 10 64bit | VA1.0 | 71.5 MB |
| 7/7/2017 | Intel Chipset driver for Windows10 64bit | VA1.0 | 2.6 MB |
Manual
| Date | Description | Version | Download File |
| 7/7/2017 | User Manual | VA1.0 | 5.6 MB |
| 7/7/2017 | Quick Manual | VA1.0 | 171 KB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB |
