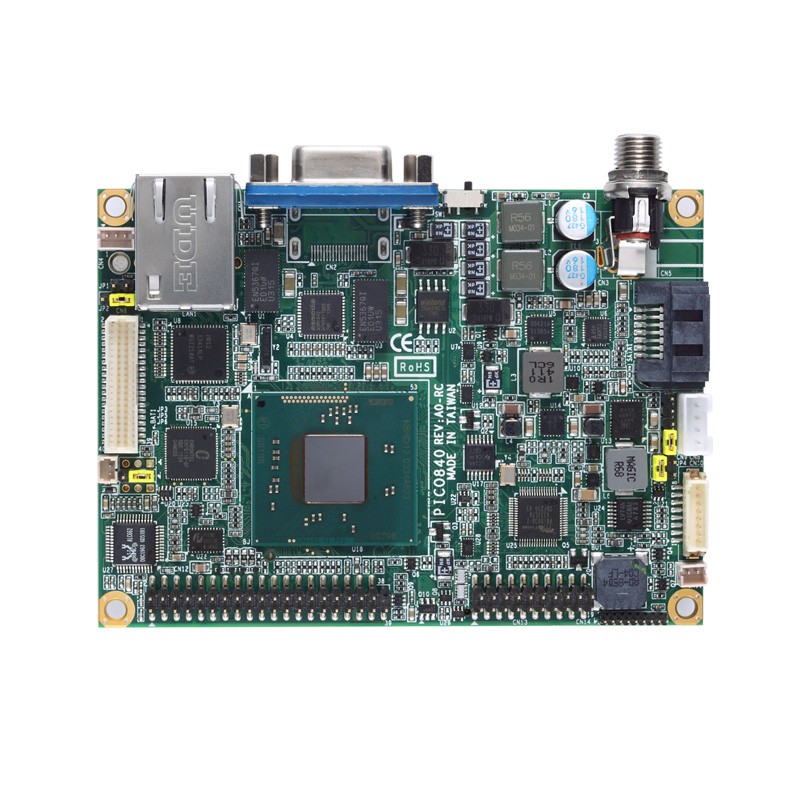

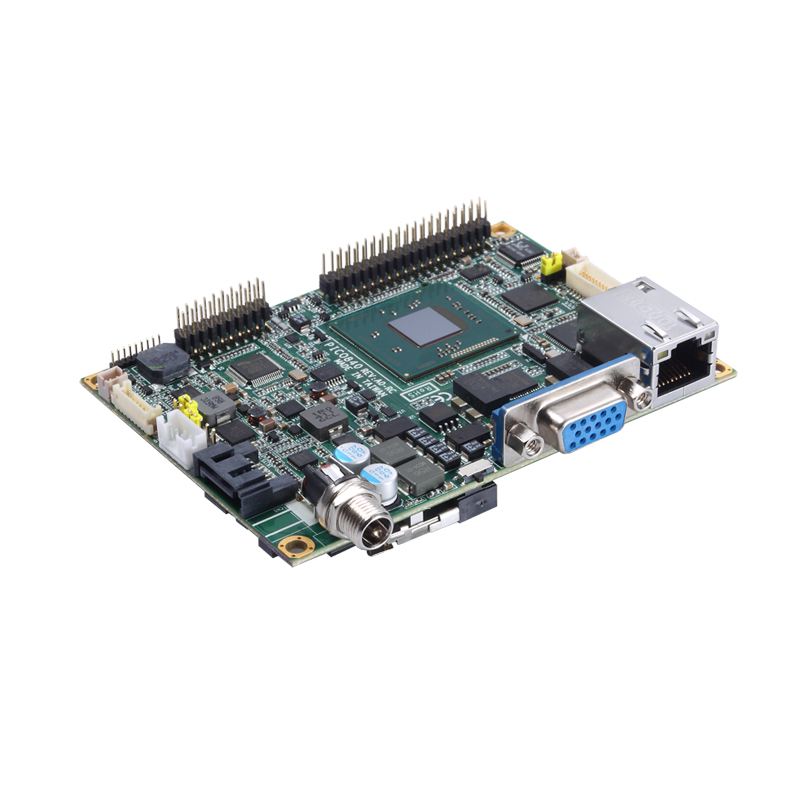

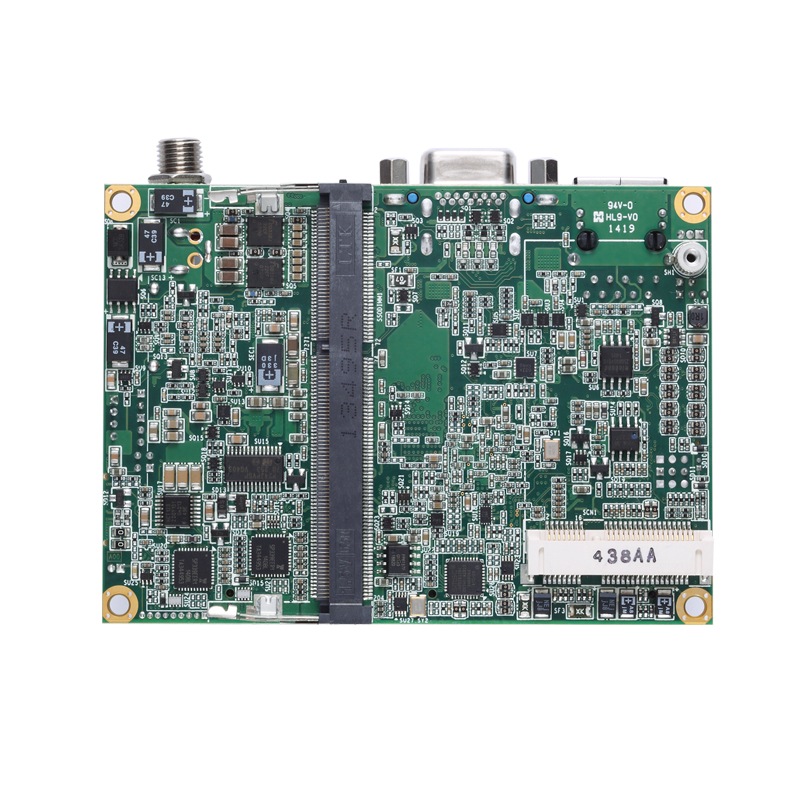

کیس کوچک Pico-ITX با پردازنده Intel® Celeron® J1900/N2807، LVDS/VGA (HDMI)، پورت LAN و صدا
محصولات مرتبط
- پردازنده Intel® Celeron® J1900/N2807 (Bay Trail SoC)
- 1 رم DDR3L-1066/1333 SO-DIMM، تا 8 گیگابایت
- 4 پورت USB 2.0
- 2 پورت COM (RS-232/422/485 قابل انتخاب)
- کارت PCI Express Mini با پشتیبانی از mSATA
| CPU | Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz) |
| Chipset | SoC integrated |
| System Memory | 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 2.0 |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® i211AT) |
| Display | 1 x VGA or 1 x HDMI |
| 1 x LVDS | |
| Digital I/O | N/A |
| Audio | MIC-in/Line-out |
| Storage | 1 x SATA-300 |
| Expansion | 1 x Full-Size PCI Express Mini Card with mSATA supported |
| Others | SMbus |
| ST ST33TPM12LPC with TPM 1.2 compliant | |
| Battery | Lithium 3 V/ 220 mAH |
| Power Input | DC power jack connector |
| +12V DC-in only | |
| AT Auto Power On function supported | |
| Power Requirements | Intel® Celeron® J1900 @ 8GB DDR3L |
| Max. RMS. +12V @ 0.9A | |
| Intel® Celeron® N2807 @ 8GB DDR3L | |
| Max. RMS. +12V @ 0.7A | |
| Watchdog Timer | 255 levels, 1~255 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | -20°C ~ +70°C (-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 95% relative humidity, non-condensing |
| Dimensions | 100 x 72 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
| PICO842VGA-J1900 (P/N-E38H842100) |
| Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS, 1 GbE LAN, audio and gift box |
| PICO842VGA-N2807 (P/N- E38H842101) |
| Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS, 1 GbE LAN, audio and gift box |
Drivers
| Date | Description | Version | Download File |
| 7/12/2017 | Function driver for Windows 8 | VA1.3 | 492.7 MB |
| 7/12/2017 | Function driver for Windows 8 | VA1.3 | 492.7 MB |
| 7/12/2017 | Function driver for Windows 7 | VA1.3 | 466.8 MB |
Manual
| Date | Description | Version | Download File |
| 12/25/2015 | PICO840_PICO842 User's Manual VA2_ 09-01-2015 | VA2.0 | 4.4 MB |
| 12/25/2015 | AX93283 Quick Manual VA1_03-03-2015 | VA1.0 | 65 KB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB | |
| 3/26/2021 | CE-Conformity Declaration | 131 KB | |
| 8/9/2017 | CE-Conformity Declaration | 46 KB |
برای اطلاعات بیشتر راجع به محصول PICO842 از AXIOMTEK، پی دی اف زیر را مطالعه فرمایید.
