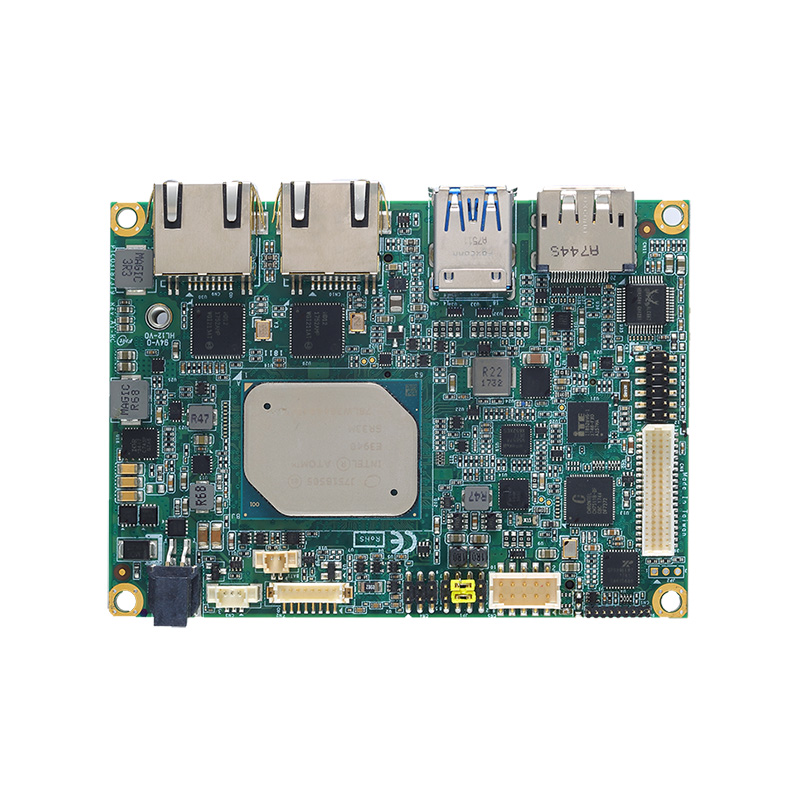

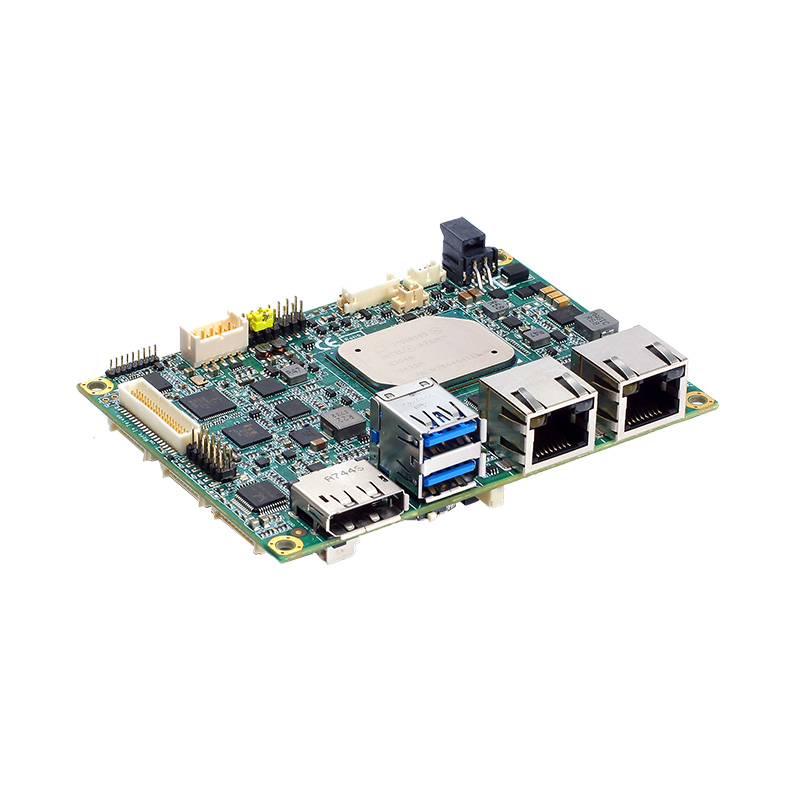

کیس کوچک Pico-ITX با پردازنده Intel Atom® x5-E3940، پورت DisplayPort++، LVDS، شبکه 2 GbE و صدا
محصولات مرتبط
- پردازنده Intel® Atom® x5-E3940
- 1 اسلات حافظه DDR3L SO-DIMM برای حداکثر 8 گیگابایت حافظه
- 2 پورت شبکه GbE
- 1 اسلات کارت PCI Express Mini با پشتیبانی از mSATA
- پشتیبانی از M.2 Key B
| CPU | Intel® Atom® x5-E3940 processor onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485 1 x RS-232 |
| USB | 2 x USB 2.0 2 x USB 3.0 |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® I210-AT) |
| Display | 1 x LVDS 1 x DisplayPort++ |
| Digital I/O | 4-channel in/out programmed |
| Audio | MIC-in/Line-in/Line out |
| Storage | 1 x M.2 Key B (SATA, USB 2.0, USB 3.0, PCIe x2 optional) in 22 x 42 or 30 x 42 1 x mSATA (optional) |
| Expansion | 1 x Half-size PCI Express Mini Card slot |
| Others | SMBus; compatible with I2C |
| Battery | Lithium 3V/220 mAH |
| Power Input | 2 x 2-pin connector +12V DC-in only AT Auto Power On function supported |
| Power Requirements | Intel® Atom® x5-E3940 @1.6 GHz 8GB DDR3L Max RMS: +12V @1.3A |
| Watchdog Timer | 65536 levels, 1 to 65535 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 100 x 72 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
| Industrial Chassis | N/A |
PICO319PGGA-E3940 (P/N-E38H319100)
Pico-ITX SBC with Intel® Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), DisplayPort++, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
PICO319PGGA-E3940 70°C (P/N-E38H319101)
Pico-ITX SBC with Intel® Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), DisplayPort++, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (with heatsink)
7128H319000E
Heatspreader
590000086600
Power cable for adapter, L=180mm
50966124050E
Adapter 12V 60W FSP060-DHAN3 with screw
59312260020E
Audio cable with bracket, P=1.25 mm, L=450 mm
59380880250E
COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
594E8422800E
2 x USB 2.0 cable with bracket, L=180 mm
594H3186800E
Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
E393A19100
AX93A19 SIM card slot board
Drivers
| Date | Description | Version | Download File |
| 5/17/2023 | SerialPatch | VA1.1 | 1.5 MB |
| 5/17/2023 | Audio Driver | VA1.1 | 124.9 MB |
| 5/17/2023 | TXE Driver | VA1.1 | 70.5 MB |
| 5/17/2023 | LAN Driver | VA1.1 | 72.1 MB |
| 5/17/2023 | Chipset Driver | VA1.1 | 4.9 MB |
| 5/17/2023 | Graphic Driver | VA1.1 | 359.4 MB |
Manual
| Date | Description | Version | Download File |
| 7/3/2023 | User Manual | VA6 | 5.2 MB |
| 7/23/2019 | Quick Manual | VA1 | 273 KB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB | |
| 4/15/2021 | CE-Conformity Declaration | 130 KB |
برای اطلاعات بیشتر از محصول PICO319 از AXIOMTEK، پی دی اف زیر را مطالعه فرمایید.
