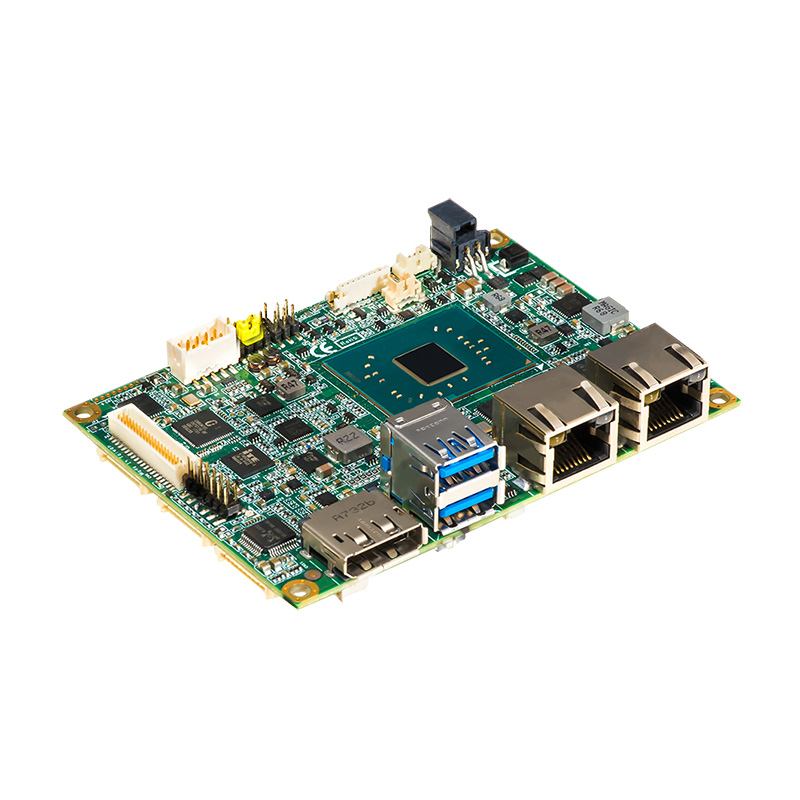

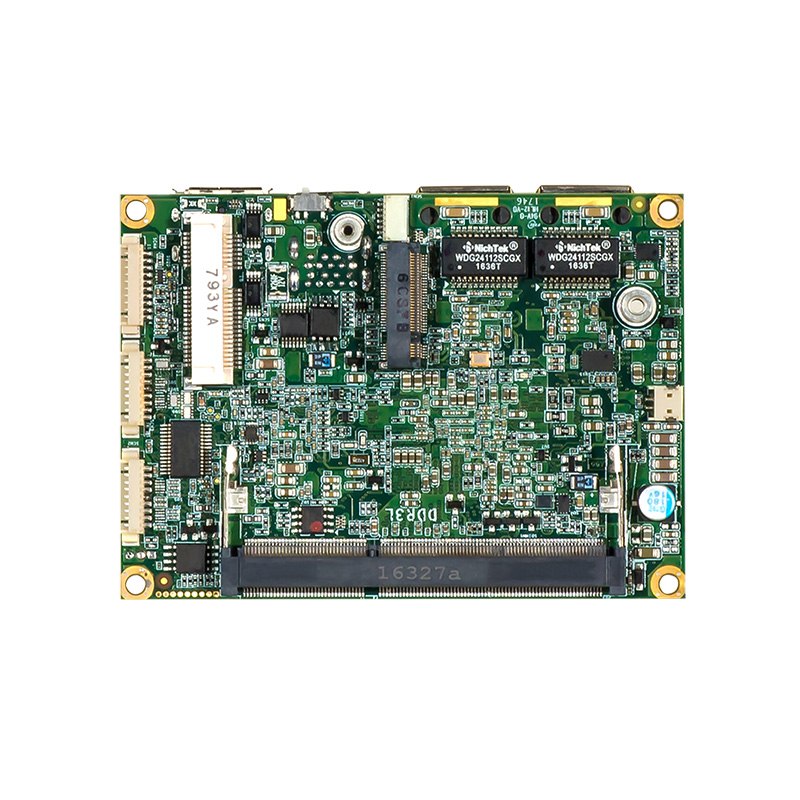

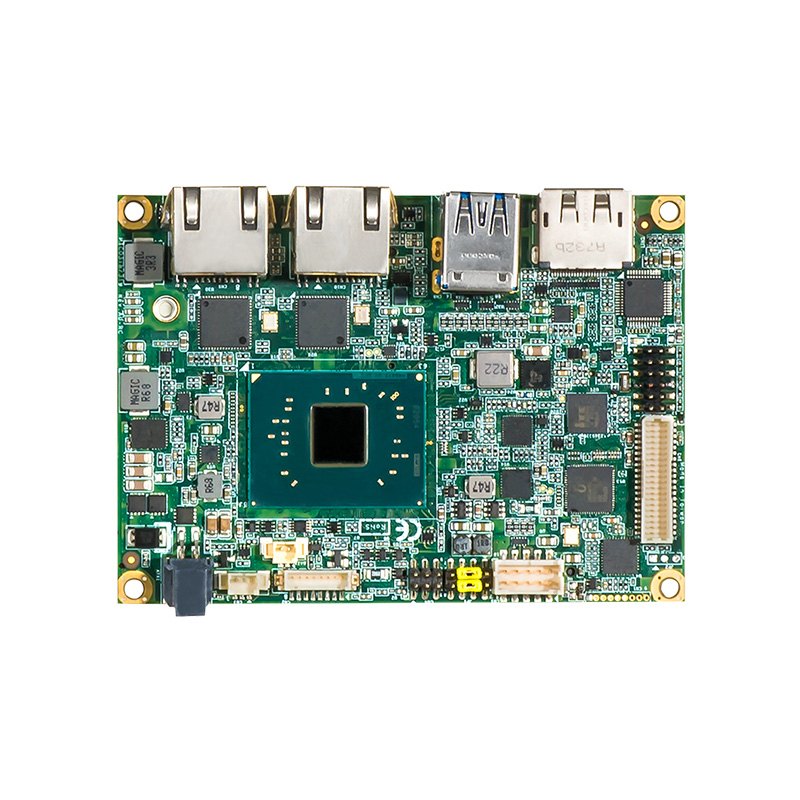

کیس کوچک Pico-ITX با پردازنده Intel® Pentium® N4200/Celeron® N3350، پورت DisplayPort++، LVDS، شبکه 2 GbE و صدا
محصولات مرتبط
- پردازنده Intel® Pentium® N4200/Celeron® N3350
- 1 عدد رم DDR3L SO-DIMM برای حداکثر 8 گیگابایت حافظه
- 1 عدد اسلات کارت PCI Express Mini با پشتیبانی از mSATA
- 2 عدد شبکه GbE
- کلید M.2 B
| CPU | Intel® Pentium® processor N4200 or Celeron® processor N3350 onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485 1 x RS-232 |
| USB | 2 x USB 2.0 2 x USB 3.0 |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® I210-AT) |
| Display | 1 x DisplayPort++ 1 x LVDS |
| Digital I/O | 4-channel in/out programmable |
| Audio | Mic-in/Line-in/Line-out |
| Storage | 1 x M.2 KEY B (SATA, USB 2.0, PCIe x2 optional) in 22 x 42 or 30 x 42 |
| Expansion | 1 x Half-size PCI Express Mini Card slot with mSATA supported |
| Others | 1 x I2C |
| Battery | Lithium 3V/220mAH |
| Power Input | 2 x 2-pin connector +12V DC-in only AT Auto Power On function supported |
| Power Requirements | Pentium® N4200 @ 1.1 GHz, min. RMS: +12V @1.3A Celeron® N3350 @ 1.1 GHz, min. RMS: +12V @1.1A |
| Watchdog Timer | 65536 levels, 0 to 65535 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 100 x 72 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |

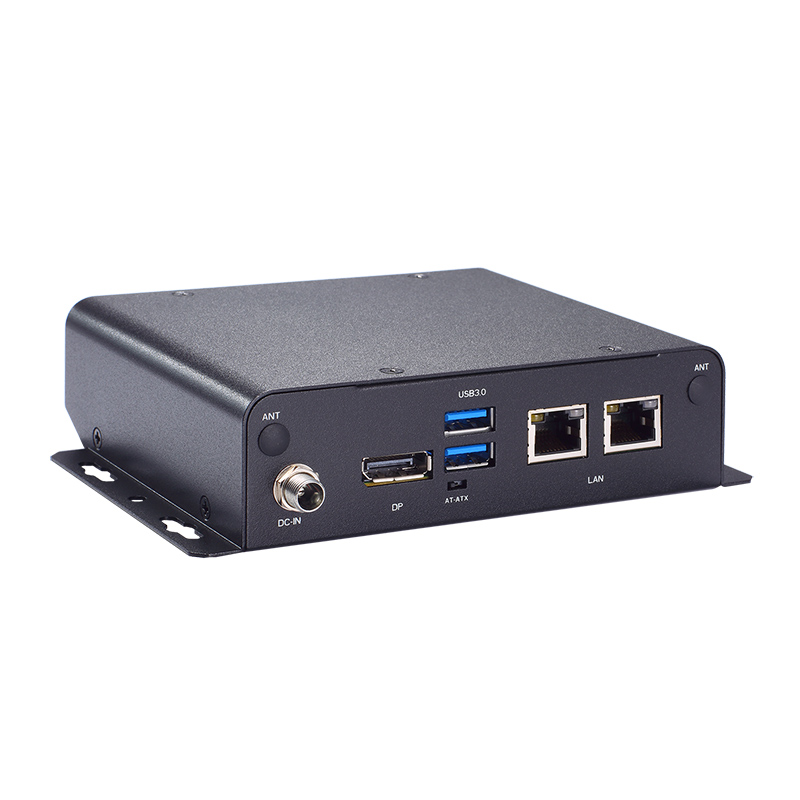

| Industrial Chassis | APC203 (P/N-E27P203100): Embedded chassis with PICO318PGGA-N3350 (P/N-E38H318102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter I/O: 2 x GbE LAN, 2 x USB 3.0, 1 x DisplayPort++, 1 x 12V DC Jack Dimensions (with wall mount ear): 152.5 mm (6") (W) x 107.5 mm (4.23”) (D) x 37.5mm (1.48") (H) Operating Temperature: -10°C to +50°C (+14°F to +122°F) |
PICO318PGGA-N4200 (P/N-E38H318101)
Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
PICO318PGGA-N3350 (P/N-E38H318100)
Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
PICO318PGGA-N3350 60°C (P/N-E38H318102)

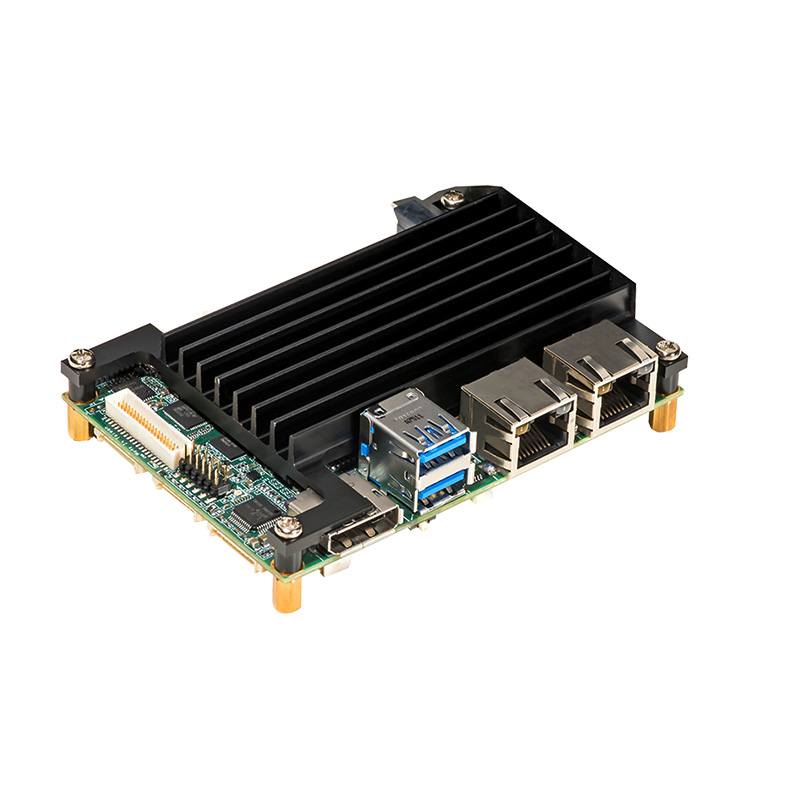

Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
PICO318PGGA-N4200 60°C (P/N-E38H318103)
Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
7128H318000E
Heatspreader
590000086600
DC power cable for adapter, L=180 mm
50966124050E
Adapter 12V 60W FSP060-DHAN3 with screw
59312260020E
Audio cable with bracket, P=1.25 mm, L=450 mm
59380880250E
COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
594E8422800E
2 x USB 2.0 cable with bracket, L=180 mm
594H3186800E
Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
E393A19100
AX93A19 SIM card slot board
Drivers
| Date | Description | Version | Download File |
| 5/17/2023 | SerialPatch | VA1.1 | 1.5 MB |
| 5/17/2023 | LAN Driver | VA1.1 | 72.1 MB |
| 5/17/2023 | Audio Driver | VA1.1 | 124.9 MB |
| 5/17/2023 | Graphic Driver | VA1.1 | 359.4 MB |
| 5/17/2023 | Chipset Driver | VA1.1 | 4.9 MB |
| 5/17/2023 | TXE Driver | VA1.1 | 70.5 MB |
Manual
| Date | Description | Version | Download File |
| 6/19/2023 | User Manual | VA6 | 5.2 MB |
| 12/7/2018 | Quick Manual | VA1 | 273 KB |
Certificates
| Date | Description | Version | Download File |
| 12/3/2021 | UKCA Declaration of Conformity | 62 KB | |
| 4/15/2021 | CE-Conformity Declaration | 130 KB |
دیتاشیت محصول PICO318 از AXIOMTEK
فایل پی دی اف زیر را مطالعه فرمایید.
برای اطلاعات بیشتر با کارشناسان واحد فروش شرکت اورین کالا دنیا، تماس حاصل نمایید.
